Global tasks DB

Global tasks DB is used for the system tasks that execute asynchronously, some examples of these tasks include creating Cluster infrastructure, adding nodes, allocating, de-allocating blocks, creating a vDAG etc - these tasks cannot be fulfilled in the context of a HTTP request, thus they are executed asynchronously.

The modules that make use of Global tasks DB first creates a task entry in the DB and returns the task ID immediately to the caller/user and then starts processing the task in the background, once the task completes/fails the corresponding status and the output will be updated in the Global tasks DB.

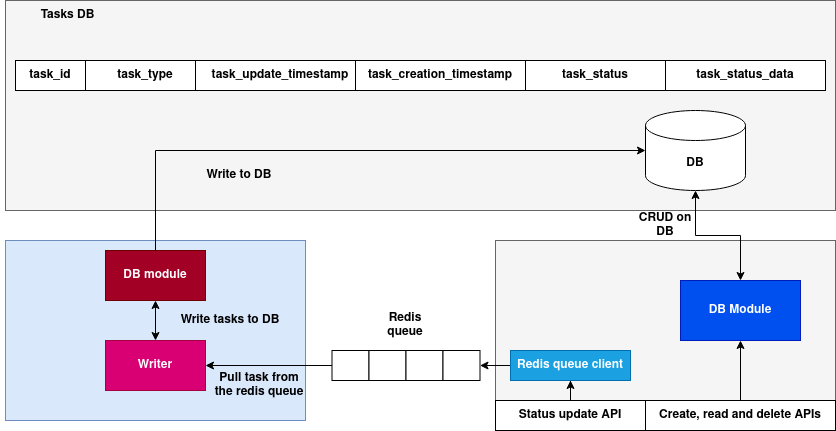

Architecture:

The writer and CRUD services can be scaled based on the load.

(Download the architecture diagram)

Schema of the Global task DB:

1. task_id (str)

• A unique identifier for the task.
• Generated using uuid.uuid4().
• Ensures every task has a distinct ID.

2. task_data (Dict[str, Any])

• Contains any data relevant to the task.
• May include inputs, configurations, or additional information for processing.
• Defaults to an empty dictionary.

3. task_type (str)

• Specifies the type of task.
• Used for classification and task management.
• Defaults to an empty string.

4. task_update_timestamp (int)

• Tracks the last time the task was updated.
• Initialized with the current UTC timestamp using int(datetime.utcnow().timestamp()).
• Useful for monitoring and logging.

5. task_create_timestamp (int)

• Records the creation time of the task.
• Similar to task_update_timestamp, but it remains constant once set.
• Provides a reliable creation timestamp.

6. task_status (str)

• Represents the current state of the task.
• Defaults to "pending".
• Other possible statuses include "in_progress", "completed", or "failed".

7. task_status_data (Dict[str, Any])

• Stores additional metadata or information about the task's current status.
• May contain error messages, progress details, or intermediate results.
• Initialized as an empty dictionary.

Python data-class of the schema:

@dataclass
class GlobalTask:
    task_id: str = field(default_factory=lambda: str(uuid.uuid4()))
    task_data: Dict[str, Any] = field(default_factory=dict)
    task_type: str = field(default_factory=str)
    task_update_timestamp: int = field(default_factory=lambda: int(datetime.utcnow().timestamp()))
    task_create_timestamp: int = field(default_factory=lambda: int(datetime.utcnow().timestamp()))
    task_status: str = field(default='pending')
    task_status_data: Dict[str, Any] = field(default_factory=dict)

Global tasks DB APIs:

1. API to create a task (Used by the internal systems):

Description:
Creates a new task with the provided data.

Endpoint:
POST /task

Curl Command:

curl -X POST http://<server-url>:5000/task \
     -H "Content-Type: application/json" \
     -d '{
           "task_data": {"key": "value"},
           "task_type": "example_task_type",
           "task_status": "pending",
           "task_status_data": {"info": "status info"}
         }'

2. API to fetch the task data using task ID:

Get Task by ID

Description:
Fetches the details of a task using its task_id.

Endpoint:
GET /task/<task_id>

Curl Command:

curl -X GET http://<server-url>:5000/task/<task_id>

3. Update Task (Used by the internal systems):

Description:
Updates the details of a specific task using its task_id.

Endpoint:
PUT /task/<task_id>

Curl Command:

curl -X PUT http://<server-url>:5000/task/<task_id> \
     -H "Content-Type: application/json" \
     -d '{
           "task_data": {"updated_key": "updated_value"},
           "task_status": "in_progress"
         }'

4. Delete Task

Description:
Deletes a specific task using its task_id.

Endpoint:
DELETE /task/<task_id>

Curl Command:

curl -X DELETE http://<server-url>:5000/task/<task_id>

5. Get tasks list by task type and the task status:

Get Tasks by Type and Status

Description:
Fetches a list of tasks filtered by task_type and optionally by task_status.

Endpoint:
GET /tasks

Curl Command:

curl -X GET "http://<server-url>:5000/tasks?task_type=vdag_creation&task_status=pending"

Updating the task data:

Updating the task status and data is an asynchronous operation, status updates made by the services are eventually updated in the DB, here is an API to update the status and the output data of the task:

Endpoint

POST /task_update

Description

Pushes a task update with a given task_id, status, and optional task_status_data to the system.

Request Format

Headers

• Content-Type: application/json

Body Parameters

Parameter	Type	Required	Description
task_id	string	Yes	Unique identifier of the task
status	string	Yes	Updated status of the task
task_status_data	object	No	Additional metadata about the task status

CURL example:

curl -X POST http://your-api-host/task_update \
     -H "Content-Type: application/json" \
     -d '{
           "task_id": "12345",
           "status": "completed",
           "task_status_data": {}
         }'

Supported task types:

1. "vdag_creation": vDAG creation task.
2. "block_alloc": Block allocation task
3. "cluster_infra_creation": Cluster infra creation task.
4. "cluster_infra_remove": Cluster infra removal task.
5. "node_addition": Adding a node to the cluster.
6. "node_removal": Removing a node from the cluster.
