FrameDB

Note: This documentation is a work in progress.

FrameDB is a distributed data store designed to store large files/binary data locally on a collection of nodes. It forms a core part of the architecture, enabling large data—such as videos, high-resolution images, or extensive text corpora—to be ingested into the local node's database. This data can later be retrieved by the processing instance as needed.

FrameDB supports in-memory as well as persistent storage.

For FrameDB in-memory operation - Redis is used internally and for persistent storage TiDB is used.

Features:

A easy to use in-memory and persistent storage system powered by redis and TiDB.
APIs to create and manage instances of both persistent storage and in memory instances.
APIs to write and read data from any frame-db instance provided its ID irrespective of whether its in memory or storage.

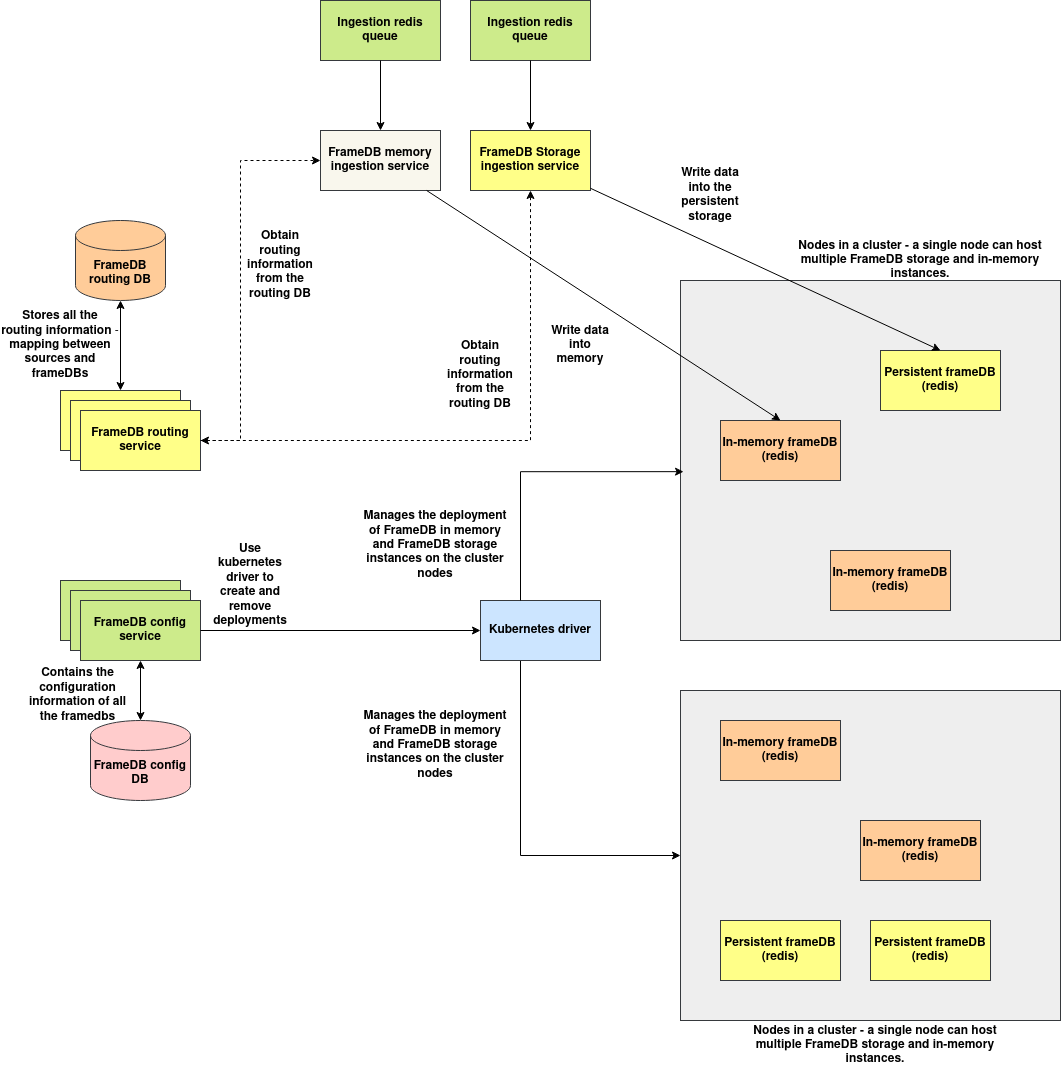

Architecture

Frame DB

Components:

1. FrameDB config service: FrameDB config service is responsible for maintaining the configuration of FrameDB deployments and also provides necessary kubernetes integrations to deploy the FrameDB deployments on the target nodes of the cluster.

2. Kubernetes drivers: Kubernetes drivers provides necessary code to deploy FrameDB deployments on the target cluster, it is integrated with the FrameDB config service and acts on the commands of the FrameDB config service.

3. FrameDB routing service: FrameDB routing service contains the mapping of FrameDB ID, FrameDB storage instance's URL mapping, this mapping can be referenced by several services that integrates with FrameDB, provided the FrameDB IP the routing service provides the URL of the service within the cluster.

4. FrameDB Ingestion services: FrameDB ingestion services are responsible for ingesting data from outside and writing the contents to the target FrameDB instance. FrameDB ingestion services are available both for in-memory and persistent storage.

5. FrameDB instances: FrameDB instances are used to store the data written into the FrameDBs, services that reads the data from FrameDB are connected directly to these DBs for fast reading without a proxy by resolving the URL from the routing service. There are two types of FrameDB instances:

a. FrameDB in-memory instances: These are redis instances that store data in memory, backup is disabled by default which can be enabled if needed. The deployments of FrameDB in-memory instances can be deployed in replica mode with quorum configured to enable replication. A FrameDB Cluster is a collection of the master redis node, the redis sentinels and the replica worker nodes. It is possible to deploy any number of FrameDB clusters on a single kubernetes cluster node.

b. FrameDB persistence instances: Powered by TiDB, however there are plans to use a different DB in the future, when deploying TiDB instances, it is possible to configure storage size, replication and DB parameters.

FrameDB In-Memory DBD APIs:

Documentation for APIs in FrameDB is a work in progress, comprehensive list of APIs will updated in this documentation incrementally.

1. API to Create a Cluster

Description:
Creates a new cluster with the given name, node configuration, and replication settings.

Endpoint:
POST /cluster/createCluster

Curl Command:

curl -X POST http://<cluster-config-url>:5000/cluster/createCluster \
     -H "Content-Type: application/json" \
     -d '{
           "clusterName": "cluster-alpha",
           "nodeTag": "node-1",
           "replicas": 3,
           "enableMetrics": true,
           "quorum": 2
         }'

Request Parameters:

Parameter	Type	Description
clusterName	string	Unique name for the cluster
nodeTag	string	Identifier for the node
replicas	integer	Number of replica nodes
enableMetrics	bool	Enable or disable metrics collection
quorum	integer	Quorum value for the cluster

2. API to Remove a Cluster

Description:
Removes the specified cluster from FrameDB.

Endpoint:
POST /cluster/removeCluster

Curl Command:

curl -X POST http://<cluster-config-url>:5000/cluster/removeCluster \
     -H "Content-Type: application/json" \
     -d '{
           "clusterName": "cluster-alpha"
         }'

Request Parameters:

Parameter	Type	Description
clusterName	string	Name of the cluster to remove

3. API to Get Cluster Info

Description:
Retrieves metadata and configuration details of a specific cluster.

Endpoint:
POST /cluster/getClusterInfo

Curl Command:

curl -X POST http://<cluster-config-url>:5000/cluster/getClusterInfo \
     -H "Content-Type: application/json" \
     -d '{
           "clusterName": "cluster-alpha"
         }'

Request Parameters:

Parameter	Type	Description
clusterName	string	Name of the cluster to query

4. API to Synchronize FrameDB with Deployment Info

Description:
Fetches all FrameDB deployment synchronization data using a flag.

Endpoint:
POST /cluster/synchronize

Curl Command:

curl -X POST http://<cluster-config-url>:5000/cluster/synchronize \
     -H "Content-Type: application/json" \
     -d '{
           "synchronize": true
         }'

Request Parameters:

Parameter	Type	Description
synchronize	bool	Trigger synchronization check

5. API to Synchronize a Specific Cluster with FrameDB

Description:
Synchronizes FrameDB with the state of the specified cluster.

Endpoint:
POST /cluster/synchronizeCluster

Curl Command:

curl -X POST http://<cluster-config-url>:5000/cluster/synchronizeCluster \
     -H "Content-Type: application/json" \
     -d '{
           "clusterName": "cluster-alpha"
         }'

Request Parameters:

Parameter	Type	Description
clusterName	string	Name of the cluster to sync

6. API to Create Multiple Clusters

Description:
Creates multiple clusters with a common prefix and sequential numbering.

Endpoint:
POST /cluster/createClusters

Curl Command:

curl -X POST http://<cluster-config-url>:5000/cluster/createClusters \
     -H "Content-Type: application/json" \
     -d '{
           "clusterPrefix": "test-cluster",
           "startIndex": 1,
           "nClusters": 5,
           "nodeTag": "node-a",
           "replicas": 3,
           "enableMetrics": false,
           "quorum": 2
         }'

Request Parameters:

Parameter	Type	Description
clusterPrefix	string	Prefix for naming the clusters
startIndex	integer	Index to start numbering the clusters
nClusters	integer	Number of clusters to create
nodeTag	string	Node tag used across all created clusters
replicas	integer	Number of replicas for each cluster
enableMetrics	bool	Enable metrics for all clusters
quorum	integer	Quorum count for all clusters

7. API to Remove Multiple Clusters

Description:
Deletes multiple clusters in one call using a list of cluster names.

Endpoint:
POST /cluster/removeClusters

Curl Command:

curl -X POST http://<cluster-config-url>:5000/cluster/removeClusters \
     -H "Content-Type: application/json" \
     -d '{
           "clusterList": ["cluster-alpha", "cluster-beta", "cluster-gamma"]
         }'

Request Parameters:

Parameter	Type	Description
clusterList	string[]	List of cluster names to remove

8. API to Create Replication (Scale Replicas)

Description:
Scales the number of replica nodes in an existing cluster by adjusting the replication factor.

Endpoint:
POST /replication/createReplication

Curl Command:

curl -X POST http://<cluster-config-url>:5000/replication/createReplication \
     -H "Content-Type: application/json" \
     -d '{
           "clusterId": "cluster-alpha",
           "replicas": 4
         }'

Request Parameters:

Parameter	Type	Description
clusterId	string	Identifier of the cluster to replicate
replicas	integer	Desired number of replicas

9. API to Get Master Node by FrameDB ID

Description:
Discovers and returns the master node associated with the given framedb_id.

Endpoint:
POST /discovery/getMaster

Curl Command:

curl -X POST http://<server-url>:5000/discovery/getMaster \
     -H "Content-Type: application/json" \
     -d '{
           "framedb_id": "framedb-xyz"
         }'

Request Parameters:

Parameter	Type	Description
framedb_id	string	Unique ID of the FrameDB instance

10. API to Get Slave Nodes by FrameDB ID

Description:
Discovers all slave nodes associated with the given framedb_id.

Endpoint:
POST /discovery/getSlaves

Curl Command:

curl -X POST http://<server-url>:5000/discovery/getSlaves \
     -H "Content-Type: application/json" \
     -d '{
           "framedb_id": "framedb-xyz"
         }'

Request Parameters:

Parameter	Type	Description
framedb_id	string	Unique ID of the FrameDB instance

11. API to Get Cluster Info by FrameDB ID

Description:
Retrieves cluster metadata associated with a specific framedb_id.

Endpoint:
POST /discovery/getClusterInfo

Curl Command:

curl -X POST http://<server-url>:5000/discovery/getClusterInfo \
     -H "Content-Type: application/json" \
     -d '{
           "framedb_id": "framedb-xyz"
         }'

Request Parameters:

Parameter	Type	Description
framedb_id	string	Unique ID of the FrameDB instance

12. API to Get Master Node by Cluster Name

Description:
Discovers the master node of the cluster identified by its clusterName.

Endpoint:
POST /discovery/getClusterMaster

Curl Command:

curl -X POST http://<server-url>:5000/discovery/getClusterMaster \
     -H "Content-Type: application/json" \
     -d '{
           "clusterName": "cluster-alpha"
         }'

Request Parameters:

Parameter	Type	Description
clusterName	string	Name of the cluster

FrameDB routing service APIs:

Documentation for APIs in FrameDB is a work in progress, comprehensive list of APIs will updated in this documentation incrementally.

1. API to Get Routing Mappings by Source ID

Description:
Fetches the routing mappings associated with a given sourceId. Typically used to retrieve how data from a source is being routed or mapped in the system.

Endpoint:
POST /routing/getMapping

Curl Command:

curl -X POST http://<server-url>:5000/routing/getMapping \
     -H "Content-Type: application/json" \
     -d '{
           "sourceId": "source-123"
         }'

Request Parameters:

Parameter	Type	Description
sourceId	string	Unique identifier for the data source

2. API to Get Master Node by FrameDB ID

Description:
Discovers and returns the master node associated with the given framedb_id.

Endpoint:
POST /discovery/getMaster

Curl Command:

curl -X POST http://<server-url>:5000/discovery/getMaster \
     -H "Content-Type: application/json" \
     -d '{
           "framedb_id": "framedb-xyz"
         }'

Request Parameters:

Parameter	Type	Description
framedb_id	string	Unique ID of the FrameDB instance

Here's the structured technical documentation for the FrameDB class, excluding the decr_ref method:

FrameDB Class Documentation

The FrameDB class provides high-level utilities to interact with a distributed Redis-based datastore. It supports dynamic connection management, synchronous/asynchronous frame retrieval, and frame deletion reference handling.

Constructor

FrameDB(svc_params, env, logger)

Parameters:

Parameter	Type	Description
svc_params	`dict`	Service parameters (usage internal)
env	`object`	Environment configuration object
logger	`AIOSLogger`	Custom logger for internal error logging

1. set_required_sizes

set_required_sizes(sizes: list)

Sets the frame sizes that the application expects to handle.

Parameter	Type	Description
sizes	list	List of sizes to track/use

2. get_frames_from

get_frames_from(sourceID: str, keys_suffixed: list) -> Tuple[bool, Any]

Synchronously fetches frame data for given keys.

Parameter	Type	Description
sourceID	str	Source identifier
keys_suffixed	list	List of Redis keys to fetch

Returns:
Tuple of (success: bool, data: list | error: str)

3. get_frames_async

get_frames_async(sourceID: str, keys_suffixed: list, k: dict, cb: callable) -> Tuple[bool, str]

Asynchronously fetches frames using a background thread and invokes the callback on completion.

Parameter	Type	Description
sourceID	str	Source identifier
keys_suffixed	list	List of Redis keys to fetch
k	dict	Extra arguments passed to the callback
cb	callable	Callback function to handle the result

Returns:
Tuple of (success: bool, message: str)

4. register_frames_channel

register_frames_channel(sourceID: str, cb: callable) -> Tuple[bool, str]

Registers a source with the internal fetch and callback queues and starts the async thread.

Parameter	Type	Description
sourceID	str	Source identifier
cb	callable	Callback function for fetched data

Returns:
Tuple of (success: bool, message: str)

5. register_frame_delete_channel

register_frame_delete_channel(sourceID: str) -> Tuple[bool, str]

Initializes a queue for handling batch deletion of keys after dereferencing. Does not start a thread (excluded as per request).

Parameter	Type	Description
sourceID	str	Source identifier

Returns:
Tuple of (success: bool, message: str)

6. push_sync

push_sync(connection, outputs: dict) -> Tuple[bool, str]

Pushes frame outputs into Redis in a pipelined manner. Uses an optional output serializer if set.

Parameter	Type	Description
connection	RedisConn	Active Redis connection instance
outputs	dict	Dictionary of key-value frame data

Returns:
Tuple of (success: bool, message: str)

7. decr_batch_keys

decr_batch_keys(sourceID: str, keys: dict)

Schedules a batch of keys to be dereferenced and potentially deleted based on ref counts.

Parameter	Type	Description
sourceID	str	Source identifier
keys	dict	Dictionary mapping keys to (decr_by, sizes_list)

8. set_output_serializer

set_output_serializer(cb: callable)

Sets a callback that transforms or serializes output before pushing to Redis.

Parameter	Type	Description
cb	callable	Serializer function returning (bool, result)

Usage examples:

Setup (Prerequisite)

Documentation for APIs in FrameDB is a work in progress, comprehensive list of APIs will updated in this documentation incrementally.

from framedb_api.framedb import FrameDB
from framedb_api.aios_logger import AIOSLogger
from framedb_api.env import Env  # Assume Env is your environment class

# Initialize environment and logger
env = Env()  # You must configure this class according to your system
logger = AIOSLogger()

# Initialize FrameDB
framedb = FrameDB(svc_params={}, env=env, logger=logger)

Sync Read Example (`get_frames_from`)

source_id = "camera-001"
keys_to_fetch = ["frame:cam001:00001", "frame:cam001:00002"]

success, data_or_error = framedb.get_frames_from(source_id, keys_to_fetch)

if success:
    print("Frames:", data_or_error)
else:
    print("Error:", data_or_error)

Sync Write Example (`push_sync`)

# Assume you already have a connection
success, connection = framedb._FrameDB__handle_new_connection("camera-001")
if not success:
    raise Exception("Redis connection failed")

outputs = {
    "frame:cam001:00003": b"<binary-data-1>",
    "frame:cam001:00004": b"<binary-data-2>"
}

framedb.push_sync(connection, outputs)

Async Read Example (`get_frames_async`)

def handle_frame_data(is_not_error, frame_data, frame_keys, **kwargs):
    if is_not_error:
        print(f"Received frames {frame_keys}:")
        for d in frame_data:
            print(d)
    else:
        print("Error occurred")

source_id = "camera-001"
keys_to_fetch = ["frame:cam001:00005", "frame:cam001:00006"]
metadata = {"job_id": "job-123"}

# Register async channel
framedb.register_frames_channel(source_id, handle_frame_data)

# Submit fetch request
framedb.get_frames_async(source_id, keys_to_fetch, metadata, handle_frame_data)

Note: The async reader uses background threads with queues. Ensure your main thread remains active (e.g., using time.sleep() or within an application lifecycle).

Set Output Serializer (Optional)

def serialize_frames(outputs):
    # Convert all frames to compressed JSON (example)
    try:
        result = {k: json.dumps(v.decode()).encode() for k, v in outputs.items()}
        return True, result
    except Exception:
        return False, {}

framedb.set_output_serializer(serialize_frames)

FrameDB

Features:

Architecture

Components:

FrameDB In-Memory DBD APIs:

1. API to Create a Cluster

2. API to Remove a Cluster

3. API to Get Cluster Info

4. API to Synchronize FrameDB with Deployment Info

5. API to Synchronize a Specific Cluster with FrameDB

6. API to Create Multiple Clusters

7. API to Remove Multiple Clusters

8. API to Create Replication (Scale Replicas)

9. API to Get Master Node by FrameDB ID

10. API to Get Slave Nodes by FrameDB ID

11. API to Get Cluster Info by FrameDB ID

12. API to Get Master Node by Cluster Name

FrameDB routing service APIs:

1. API to Get Routing Mappings by Source ID

2. API to Get Master Node by FrameDB ID

FrameDB Class Documentation

Constructor

1. set_required_sizes

2. get_frames_from

3. get_frames_async

4. register_frames_channel

5. register_frame_delete_channel

6. push_sync

7. decr_batch_keys

8. set_output_serializer

Usage examples:

Setup (Prerequisite)

Sync Read Example (get_frames_from)

Sync Write Example (push_sync)

Async Read Example (get_frames_async)

Set Output Serializer (Optional)

Sync Read Example (`get_frames_from`)

Sync Write Example (`push_sync`)

Async Read Example (`get_frames_async`)
